05-keyboard-connections

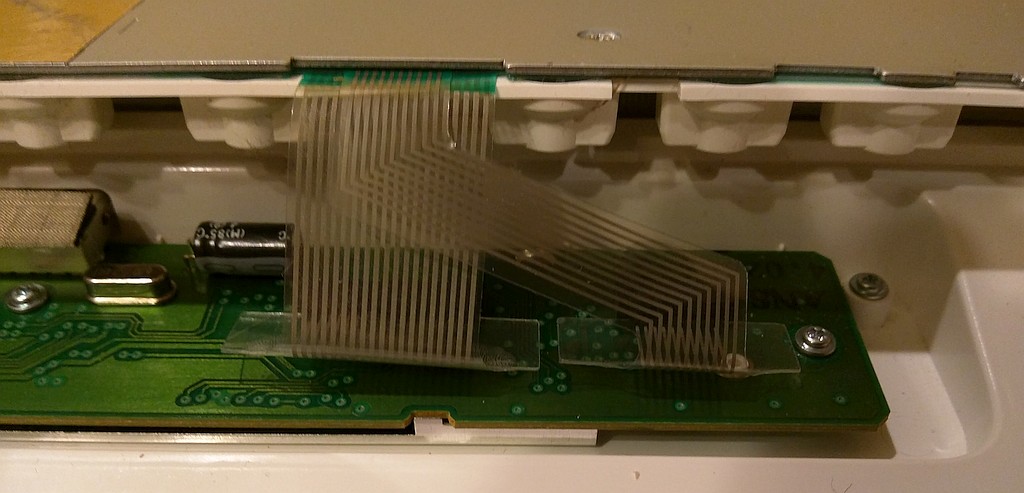

Flip the key tray assembly out away from the bottom assembly and hang the top row of the keys over the edge of the bottom assembly where the USB cable exits the case. Unplug the two keyboard connections. Gently pull the ribbon cables out of the PCB connector.   (5/37)
