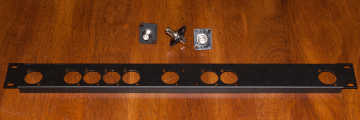

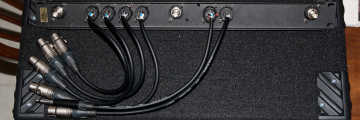

  Rough layout of gear in rack box. 1U knockout panel with holes I should need knocked out, plus my jerry-rigged antenna mounts. Gear screwed in place with jacks in knockout panel installed. Nothing soldered yet. Patch cables from the rear of the wireless units to the top panel jacks. Rear of the box with patch cables (and nothing else) connected. Test setup. It all works!
  1024x683 (275.9k) 1024x341 (227.7k) 1024x683 (298.0k) 1024x341 (233.7k) 1024x683 (314.1k) 1024x683 (315.4k)

  Completed unit. Cable-management brackets are some angle iron cut/drilled to fit and painted black, then the ends that actually contact cables (or people) dipped in Plasti-Dip.<br />Empty 1U at the bottom leaves room for expansion.
