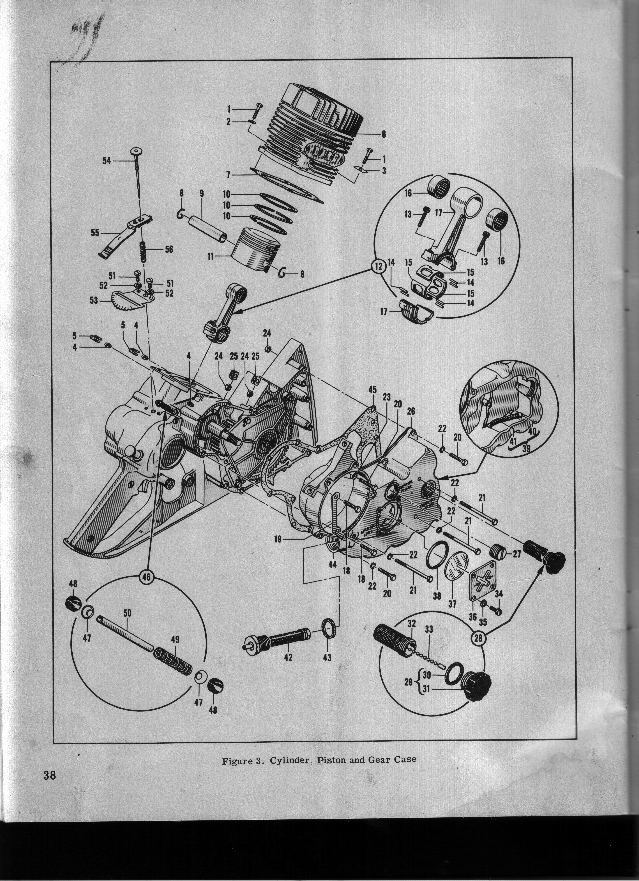

------------------------------------------------------------------------------- Index no. part no. Description units per assy. ------------------------------------------------------------------------------- 1 101885 Screw - Hex hd cap, 1/4-28x.88 in lg. 4 2 100004 Washer - Plain 1/4 .................. 3 3 24545 Lockplate ........................... 1 4 100640 Nut - Self locking 1/4-28 ........... 3 5 18556A Retainer - Nut (1/4 "U" shape)....... 2 6 28260 Cylinder Assembly ................... 1 7 19026 Gasket - Cylinder ................... 1 28020A Piston Assembly ..................... 1 8 24336 . Ring - Retaining .................. 2 9 28018 . Pin - Piston ...................... 1 10 102256 . Ring - Piston ..................... 3 11 28002B . Piston ............................ 1 12 28016 Connecting Rod Assembly ............. 1 13 101205 . Screw - Socket hd 10-32x3/4 in lg . 2 14 101035 . Roller - Needle ................... 15 15 19822 . Cage Assy. - Needle Roller (3 pcs). 1 16 100300 . Bearing - Needle .................. 2 17 28015 . Rod - Connecting (two pieces)...... 1 18 102101 Screw - Hex hd mach 10-24x.88 in. lg. 3 19 28051 Lockplate ........................... 1 20 102291 Screw - Hex hd mach 10-24x1 in. lg .. 10 21 102320 Screw - Hex hd mach 10-24x2-1/2 in lg 3 22 100002 Washer - Plain no. 10 ............... 14 23 100289 Washer - Plain ...................... 1 24 101326 Nut - Self locking 10-24 ............ 15 25 28053 Retainer - Nut (No. 10 "U" shaped) .. 2 26 28046 Gear Case Assembly .................. 1 27 101190 . Plug - Pipe 1/4-14 NPT ............ 1 28 28026 . Screen + Cap assembly - Oil filler. 1 29 28032 . . Filler Cap & Gasket assembly .... 1 30 101148 . . . Gasket - "O" ring ............. 1 31 28038 . . . Cap - Oil filler .............. 1 32 28027 . . Screen Assembly ................. 1 33 28056 . . Chain Assembly .................. 1 34 101991 . Screw - Fil hd 10-24x1/2 in. lg ... 4 35 101194 . Lockwasher ........................ 4 36 28074 . Face Plate ........................ 1 37 19857 . Window ............................ 1 38 102098 . Packing - "O" ring ................ 1 39 28022 . Hose Assembly - Oil ............... 1 40 19132 . . Weight .......................... 1 41 28007 . . Hose ............................ 1 42 24055A . Oil Pump Assembly ................. 1 43 24120 . . Gasket -Oil pump ................ 1 44 28017A . Gear Case ......................... 1 45 28120 Gasket - Gear case .................. 1 46 19523 Pressure Tube Assembly - Fuel pump .. 1 47 19286 . Washer - Countersunk .............. 2 48 19285 . Seal - Pump pressure .............. 2 49 19287 . Spring - Pressure tube ............ 1 50 19258 . Tube - Fuel pump pressure ......... 1 51 101988 Screw - Fil hd mach 10-24x.38 in. lg. 2 52 101194 Lockwasher - No. 10 ................. 2 53 19250 Detent - Main jet lever ............. 1 54 19361 Main Jet Assembly ................... 1 55 19368 Lever Assembly - Main jet ........... 1 56 19367 Spring - Main jet needle ............ 1
